Marinite CF

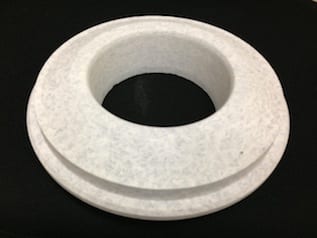

When casting aluminum, Marinite CF, a non-asbestos calcium silicate carbon fiber reinforced insulation board, is the clear choice. Manufactured with today’s modern casting technology in mind, Marinite CF Transition Plates are proven to last longer than other competitive materials while leaving an exceptionally clean casting surface.
Advantages of Marinite CF
- Low Shrinkage
- Thermal Shock Resistant
- Easily Machined
- Non-wetting
- Available in Sheet Form or as a Machined Part
For additional details please contact BNZ Materials.
| Typical Data | Marinite CF | ||
| Density | 50 (800) | ||
| Modules of Rupture | 1110 (75) | ||
| Shrinkage @ 1350°F (732°C) for 24 hours Length or Width % Thickness % |
0.50 0.98 |
||
| Moisture Content | 2.0 | ||
| Thermal Conductivity | |||
| Mean Temperature, Btu-in/ft2, hr, °F | |||
| 400 °F | 0.73 | ||
| 600 °F | 0.77 | ||
| 800 °F | 0.83 | ||
| 1000 °F | 0.88 | ||
| Mean Temperature, W/m °K | |||
| 200 °C | 0.105 | ||
| 400 °C | 0.77 | ||
| 600 °C | 0.83 | ||
| 800 °C | 0.88 | ||
| Thickness (inches) | |||
| ¾” | |||
| 1″ | |||
| 1-½” | |||
| 2″ | |||
| 3″ | |||
Disclaimer:
The physical and chemical properties of Marinite CF are obtained in accordance with accepted test methods and are subject to normal manufacturing variations.
